Manual Injection vs Pump-Assisted SPR Experiment

Do you need affinity, or do you need kinetics? That one question decides your SPR setup. Manual injection — what we call static SPR — gives you affinity (K_D) at steady state, fast and simply. A pump — kinetic SPR — adds continuous flow, so you can watch the complex come apart and measure how fast it forms and breaks (k_on, k_off) as well as K_D.

Need affinity (K_D) only?

Manual injection → P4SPR 2.0

Static, steady-state SPR. No pump, no fluidics, laptop powered. Ideal for screening, yes/no binding and assay development.

Need k_on / k_off too?

Pump-assisted flow → P4PRO + AffiPump

Static and flow in one compact system — full kinetic characterization, switching modes without reconfiguring.

The rest of this guide explains why: how each mode works, what the sensorgrams look like, and how to choose.

Basic Principles of Kinetics and Affinity

In an SPR experiment, ligands (L) are immobilized onto the sensing surface and introduced to an analyte (A). If A has affinity for L at a 1:1 ratio, one can assume a Langmuir binding model:^1–3

L + A  ⇌  LA     (k_on, k_off)

Here, k_on (M⁻¹ s⁻¹) is the association rate constant and k_off (s⁻¹) is the dissociation rate constant (also written k_a and k_d). The dissociation equilibrium constant K_D — the point at which half of the surface-immobilized ligands are bound to analytes — can be expressed in terms of the free concentrations of analyte [A], ligand [L], and analyte-ligand complex [AL], and also directly from the rate constants:

K_D = [L][A] / [AL] = k_off / k_on

A sensorgram has three main regions used in both steady-state and kinetic experiments. The manual injection mode (steady-state) uses the association region (A) and steady-state plateau (B) to obtain affinity data only. The pump mode (kinetics) uses the association and dissociation phases (A and C) to obtain both kinetic and affinity data.

Manual Injection: Static SPR for Affinity (K_D)

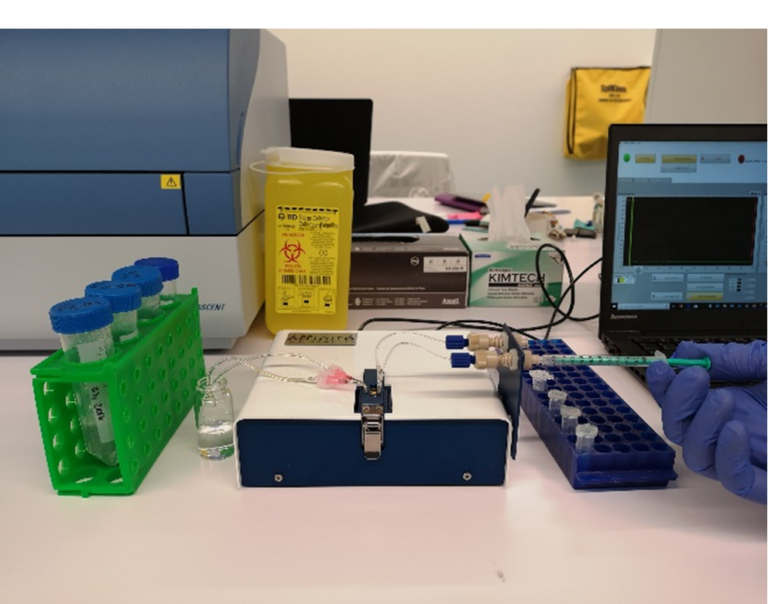

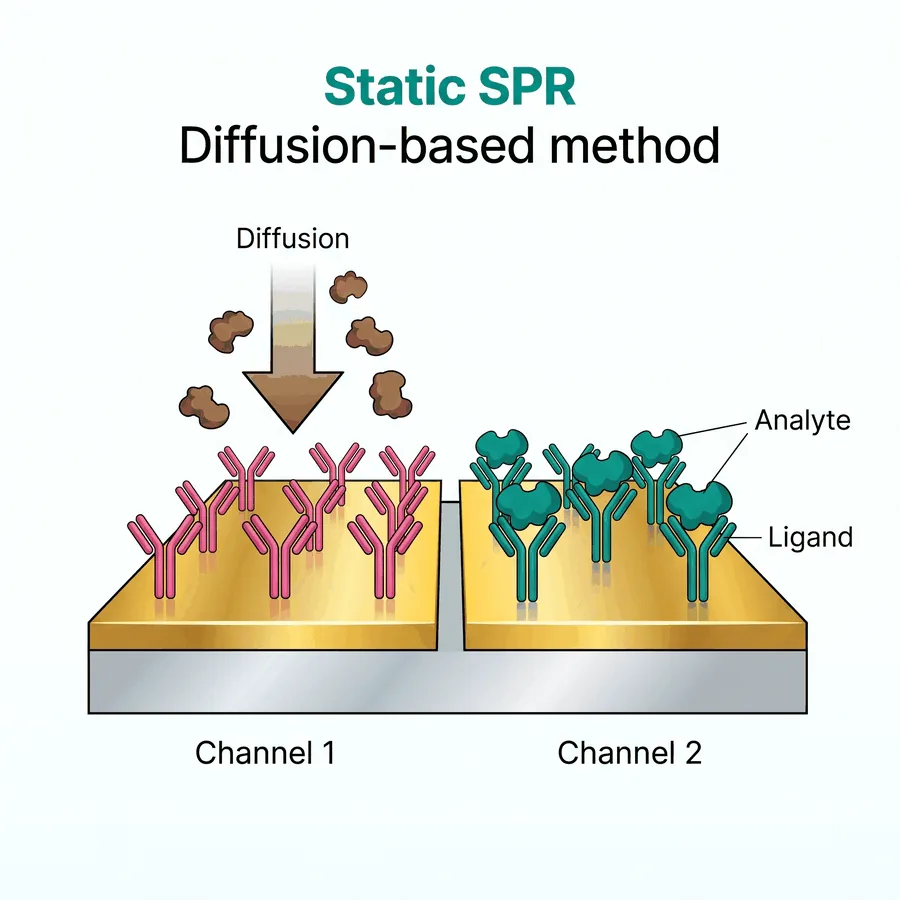

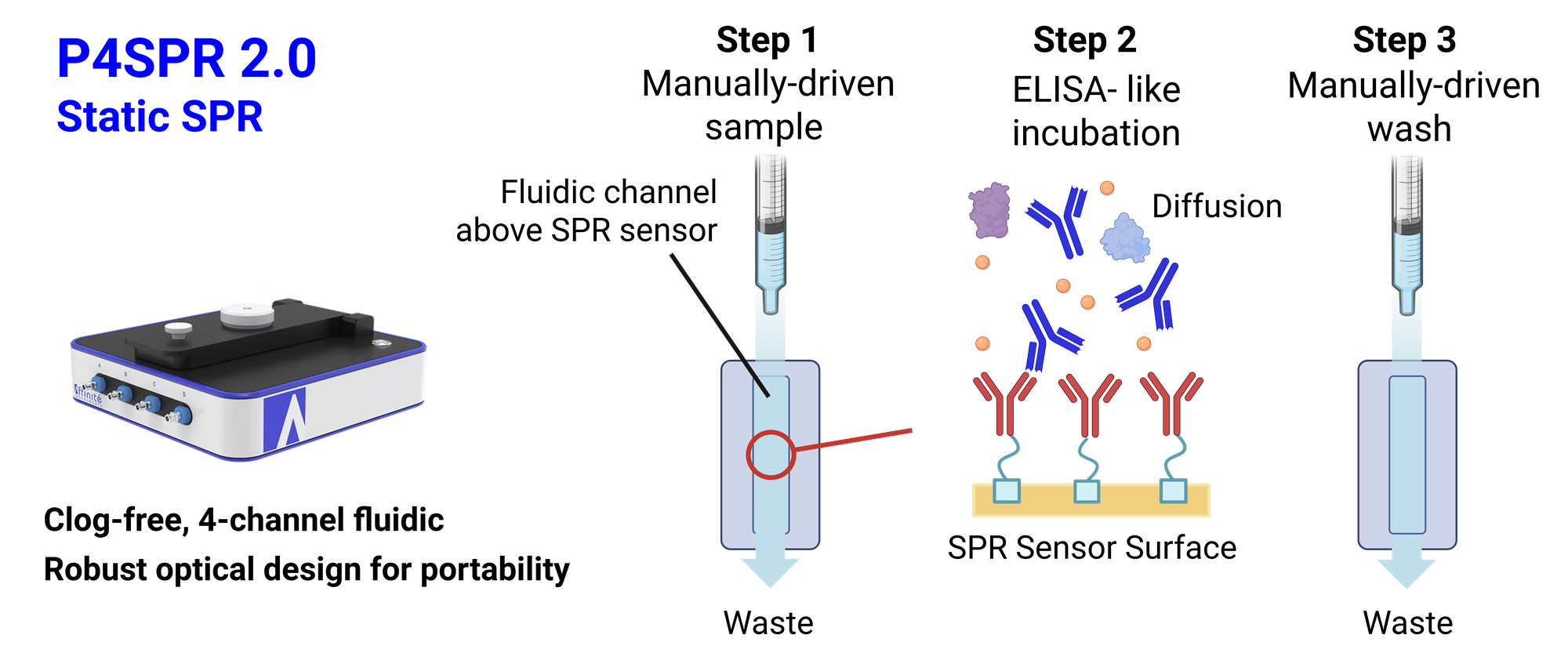

In manual injection mode, samples are injected into the SPR instrument via syringe. Steady-state measurements involve observing equilibrium binding — where the net rate of binding is zero — as a function of analyte concentration, to determine K_D.

A typical experiment involves injecting a series of increasing analyte concentrations (at least 5 concentrations) and allowing the sample to remain in contact with the sensor surface until the binding curve levels out (steady state). Note that there is no dissociation phase, since steady-state conditions must be met and there is no flow. The SPR response at steady-state is then plotted against analyte concentration to generate a binding isotherm, and K_D is determined by fitting that curve to the steady-state equation.

Pump-Assisted: Kinetic SPR for k_on, k_off and K_D

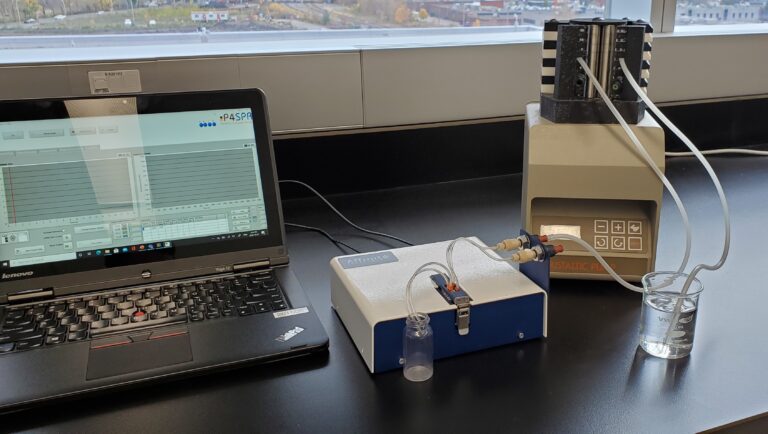

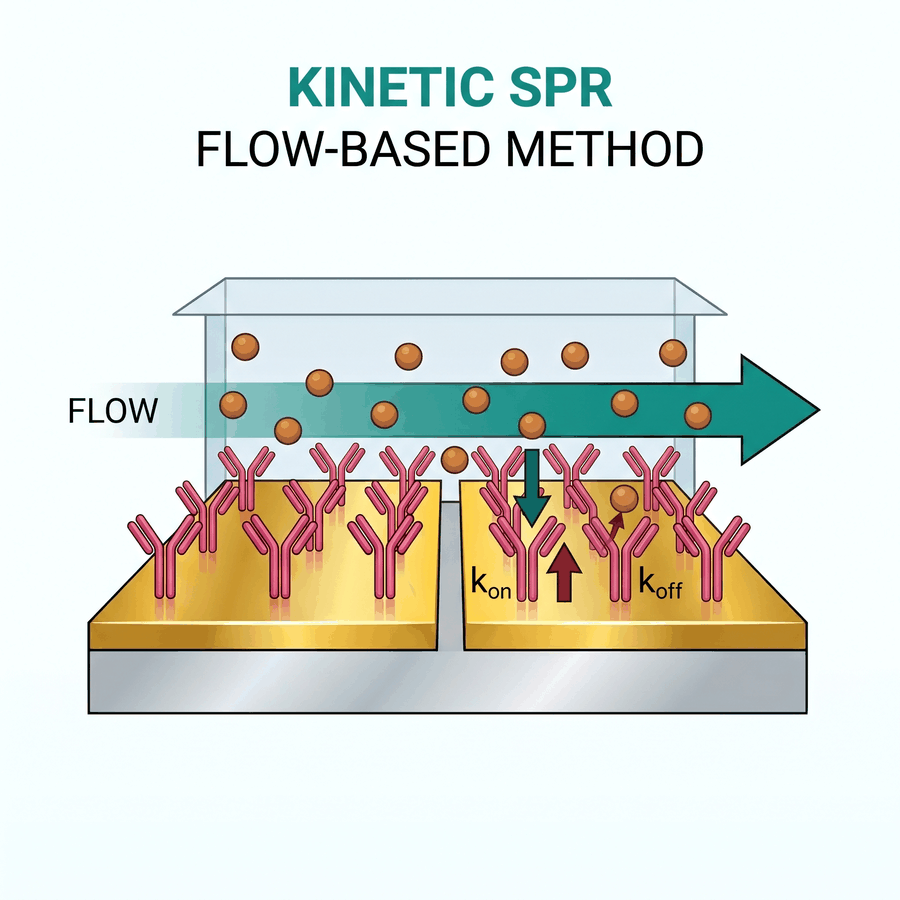

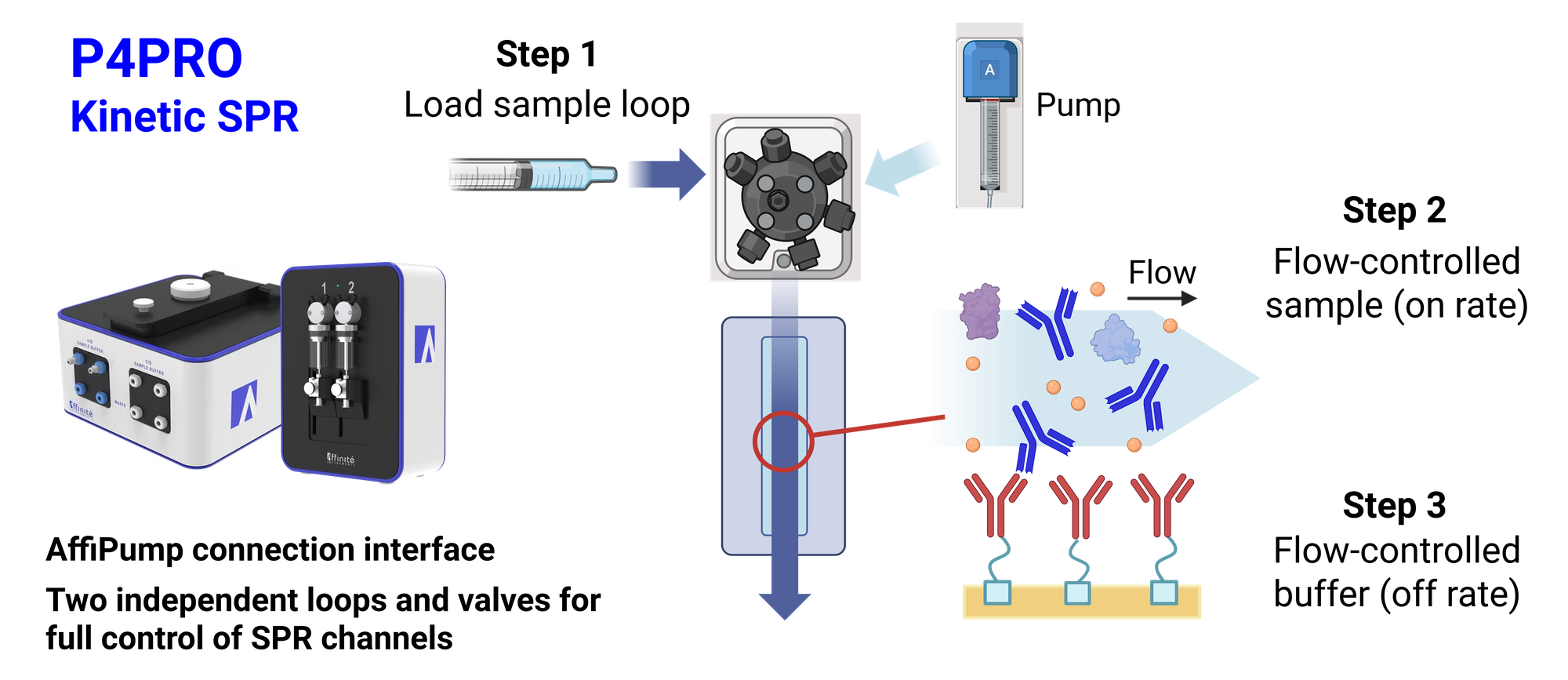

A pump is required for kinetic measurements because a continuous flow must be provided to observe the dissociation phase following sample injection. The pump delivers sample and running buffer in sequence over the sensor surface. On the P4PRO, the AffiPump does this job.

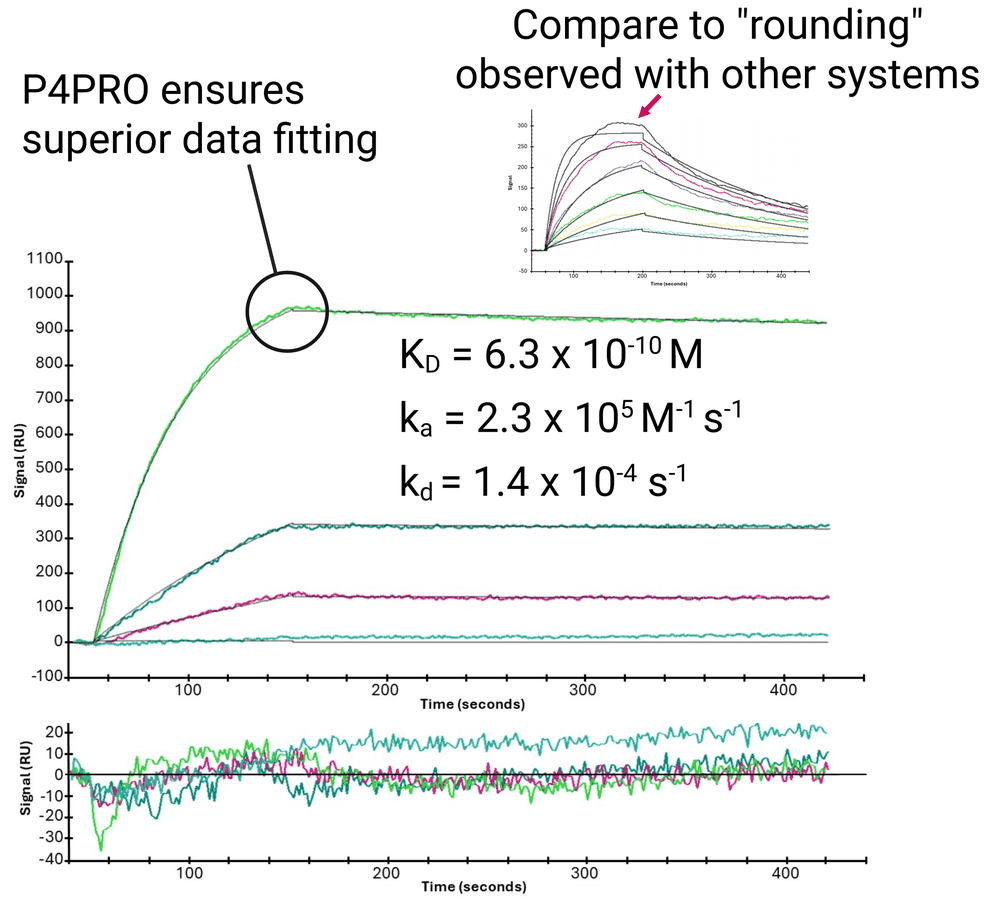

Once the sensorgrams are collected, the association phase is fitted with a suitable binding model — usually a 1:1 Langmuir model (single exponential) — to obtain k_on. The dissociation phase is then fitted with a single exponential decay model to find k_off. K_D is then calculated as K_D = k_off / k_on. The steady-state plateau is not observed in kinetic analysis because running buffer is introduced before the analyte-ligand interaction reaches equilibrium, forcing dissociation.⁴

Multi-Cycle vs. Single-Cycle Kinetics

Kinetic analysis can be performed in two ways:

Multi-cycle kinetics — one analyte concentration is injected to provide one complete sensorgram, followed by a regeneration step. A new concentration is then injected for the next sensorgram, and so on until all concentrations are run. At least 5–8 concentrations are recommended.

Single-cycle kinetics — multiple analyte concentrations (usually low to high, up to 5 concentrations) are injected within the same cycle with no regeneration steps in between.

In both cases, it is recommended to use a range of concentrations centered around the expected K_D (from 0.1 to 10 × K_D) to eliminate artifacts due to concentration dependency when fitting to a binding model. Other considerations for kinetic measurements include the requirement for more sample volume and the potential for mass transfer effects at high analyte concentrations.

Which one should you choose? Multi-cycle gives you a separate curve for every concentration, so you can subtract a blank per curve, drop a failed injection and troubleshoot complex binding. Single-cycle is the better choice when regeneration would damage your ligand or surface — or simply when you want a shorter run.

When Static SPR Is the Better Choice

Kinetics is not automatically "better". If the complex dissociates quickly — as a rule of thumb, k_off faster than about 10⁻³ s⁻¹ — binding reaches steady state fast and the plateau gives a reliable K_D. Once dissociation gets faster than about 10⁻¹ s⁻¹, the rate constants become hard to resolve at all, and steady-state analysis is the way to go. This is common with small molecules and fragments.²

Steady-state is also a useful cross-check: if the K_D from the plateau agrees with k_off/k_on from your kinetic fit, you can trust the result more.²

Comparison Summary

Besides the type of data needed, factors such as cost, sample volume, time, and portability all influence which setup is most appropriate for a given experiment. On time, static wins: our TN-05 comparison puts static assays at up to half the time of kinetic SPR.

Two Instruments, Both Modes

Affinité Instruments builds one instrument for each need — and both run the same sensors and the same software, so your methods carry over. Researchers have published binding studies on Affinité's portable SPR — for example protein–heparin interactions⁵ and the effect of serum albumin on binding kinetics⁶ — and portable SPR as a whole is reviewed in reference 7.
